Applications

-Loading sand, aggregate & rock

-General purpose use

-Clean up and earth moving

Features and Benefits

Our Clamshell Grapple Bucket – 3 Pin Hole is a great multi-functional tool to have on the job site. It is capable of loading, lifting and dumping, as well as digging, dredging or even used as a grapple.

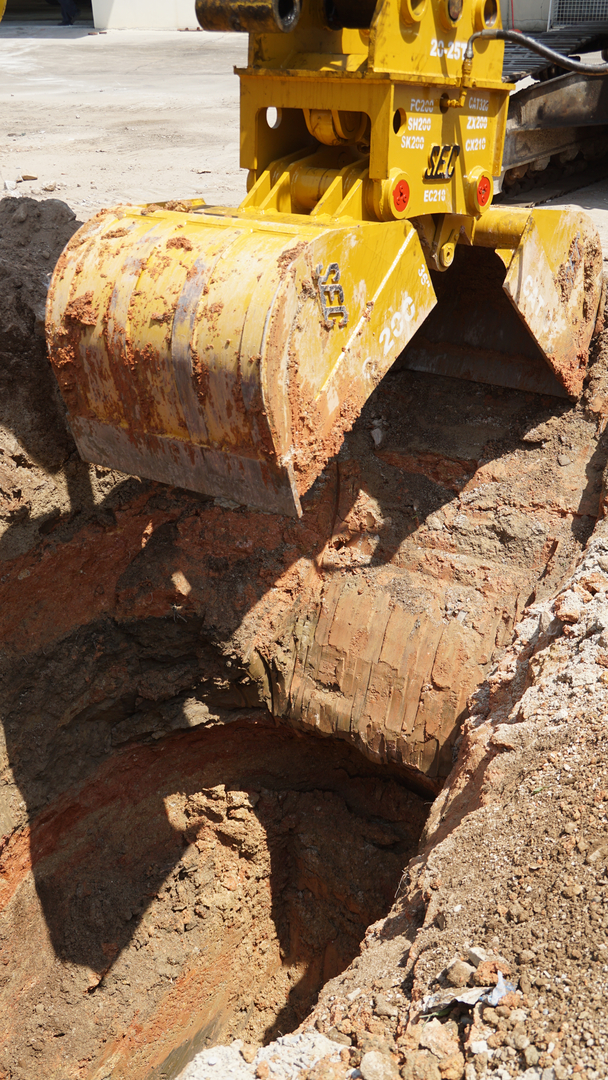

With its fast cycle time of being able to do 15 lifts in 5 minutes, it greatly increases productivity on the job site. It is capable of lifting full bucket loads, the capacity per lift is 1 cubic meter or 1.2 tons of dirt. It can also be used to dig through dirt or clay and can dig up to 6 meters deep.

The 3 Pin Hole Design enables the bucket to be used on excavators that do not have 3rd valves/hydraulic lines. Simple mount the stick in the middle pin hole, and reroute the bucket cylinder hydraulic line to the Clamshell Grapple Bucket.

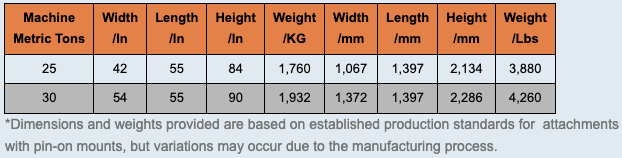

Clamshell Bucket - 3 Pin Hole Specifications
